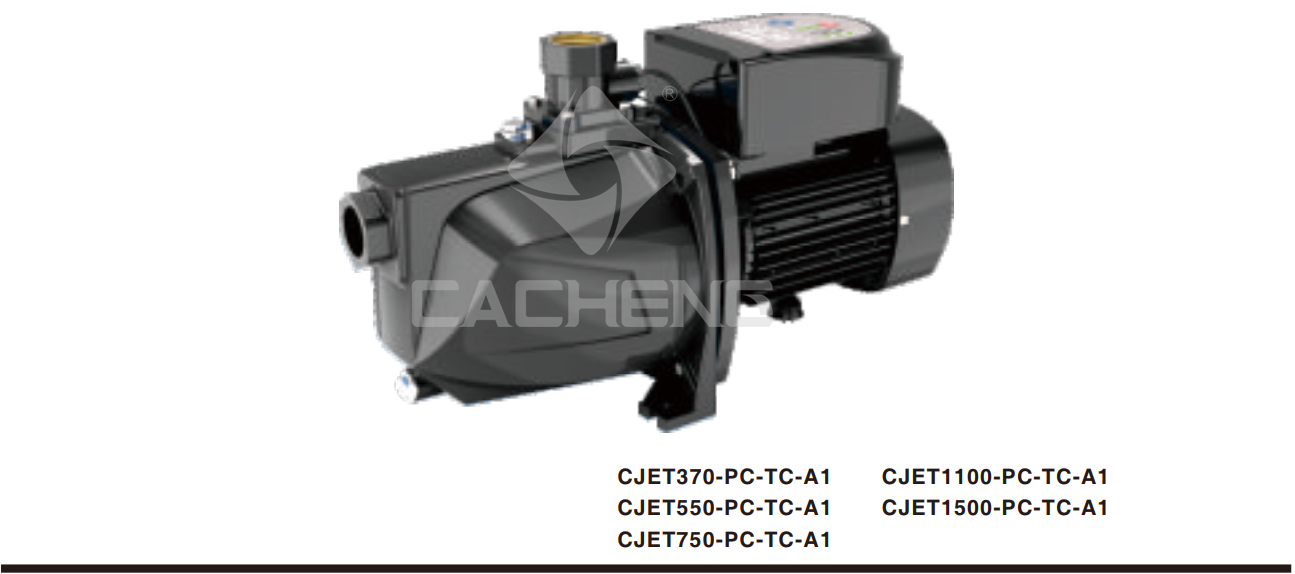

CJET370-PC-TC-A1/CJET550-PC-TC-A1/CJET750-PC-TC-A1

CJET1100-PC-TC-A1/CJET1500-PC-TC-A1

Operation Conditions:

The liquid temperature is as high as 80C(including

temperature protection fucntion),the ambient temperature

is as high as 40C,and the maximum suction distance is

9.5 meters.

Motor:

Two-Pole induction motor(n=2900r/min)

Insulation:Class F

Protection:IP44

Continuous service:S1

Thermal protector

Single-phase:110-240V/60Hz

Function:

Linear pressure sensor is used to control the starting pressure

of pump instead of traditional mechanical switch.

At the same time, it has advanced flow control system.

The function of the pump include:

1.Stepless voltage regulation

2.Plug-and-play

3.Intelligent overlapping

4.Flow control

5.Water shortage protection

6.Automatic opening of water supply

7.Turn-off protection

8.Electrophoresis rust prevention
