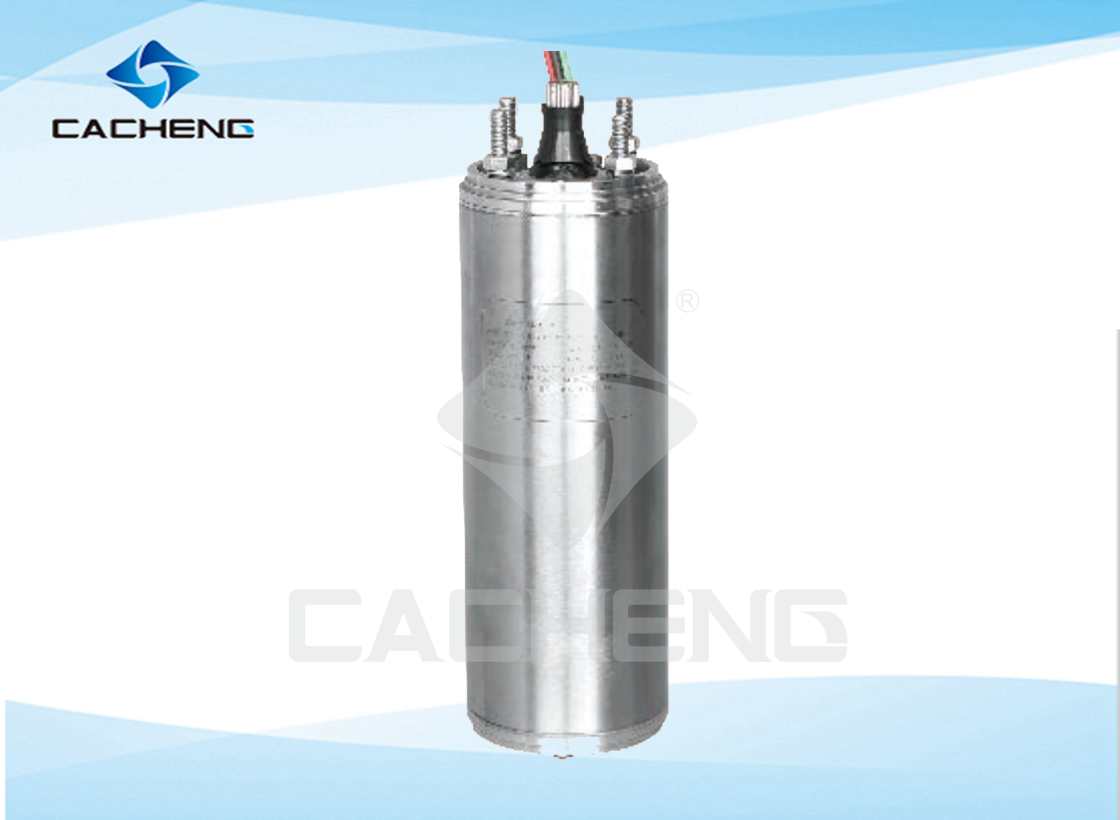

Features:

Equiping with 4" submersible pump,it is applicable to 4" or above the wells

Meet the dringking water standard,304ss motor case body

Single-phase motor with lighting protection function

Plug-in cable

Low power silicon steel laminated plate ensure high start-up torque

A thrust bearing designed with maintenance-free water lubrication can

withstand high stength axial thrust load

Automatic replenishment of the check valve filtration system

100% simulated 250m water work condition insulation test

Special Epoxy resin perfusion, high efficiency heat conduction to ensure longer service life.

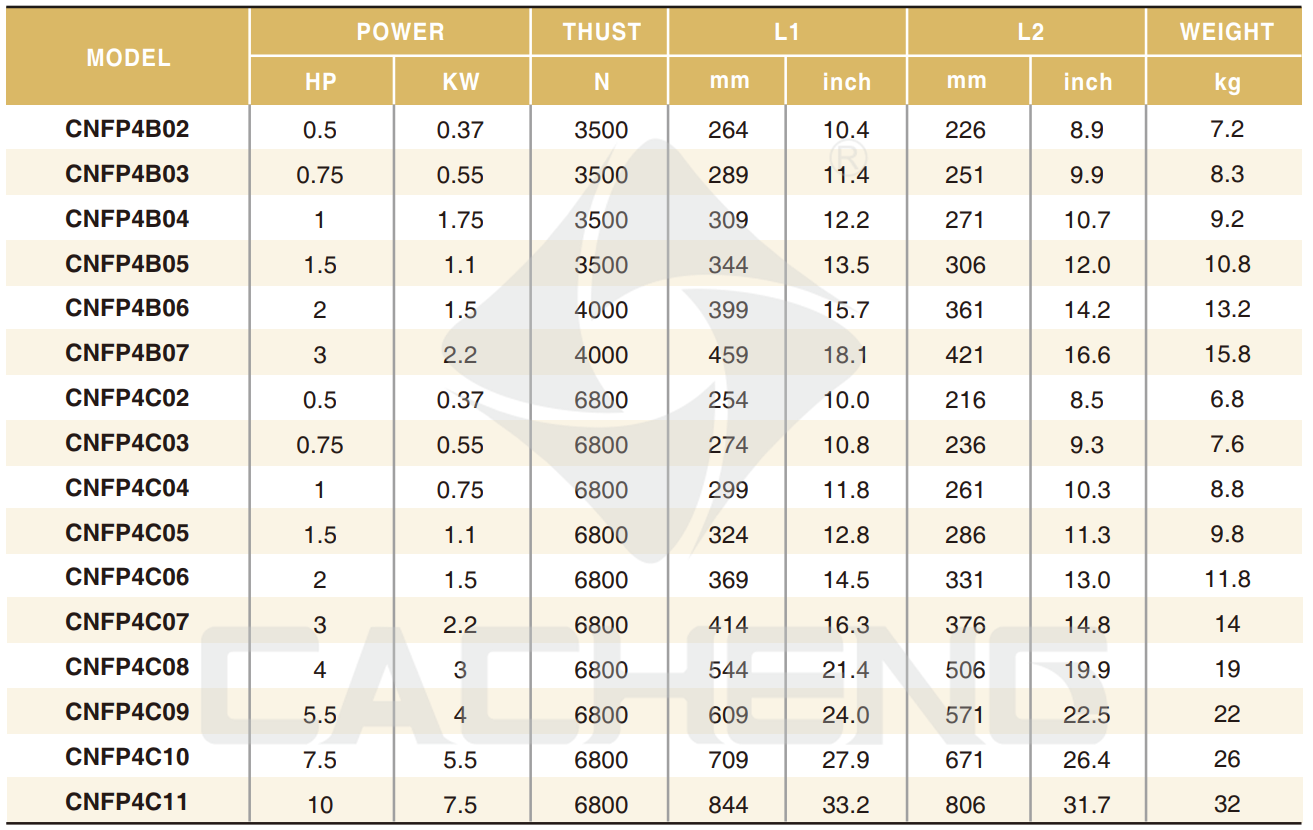

Motor:

Power range:Single-phase motor power:0.5HP-3HP

            Three-phase motor power:0.5HP-10HP

Rated voltage and frequency:380V-460V/60Hz

                            210V-220V-230V/50Hz

Connection mode:4"NEMA standard

Protection Rating:IP68

Insulation Grade:F

Maximum startup times:30 times/h

Ambient temperature:35℃

Cabe wire specification:XHHW-2 AWG14

Cooling flow:Min.0.08m/s

Starting mode:0.5-10HP start directly

PH range of media:6.5-8.0

Lower thrust load:3500N, 4000N, 6800N

Mounting mode:Vertical/Tilt(Customizable horizontal installation)
